When monitoring ponds or waterways is necessary, the water level meter is the right tool.
The water level meter or water level station is equipment that allows recording and transmission of the water's height, or snow (at specific location) over a waterway or basin. It analyses water depth evolution. This information is particularly useful in the management of sewerage networks, rivers, and other waterways. We also use it in the agricultural sector to manage irrigation and drainage.
Height is expressed either in meters or in centimeters.
This height measurement can be transformed inyo a river's flow estimate with the help of a rating curve. Flow control is a strategic challenge for several different sectors.
The station can also be equipped with flow sensors, pressure, and surveillance camera for floods. Data is made available online, and allows the generation of alerts for specific intervention teams.
We propose personalized solutions for the measurement and transmission of data relative to the client's needs and constraints.
Advantages
Mechanical Characteristics
Dimensions : from 1m to 7m high (custom structure), horizontal offset up to 5m.
Matérials : all aluminum.
Connections : 4-core cable.
Principal Characteristics
Measurement range : from 0,5 to 10m
Precision : ± 1 cm
Measurement principle : measure between emission and reception of an ultrasonic pulse using processing algorithm.

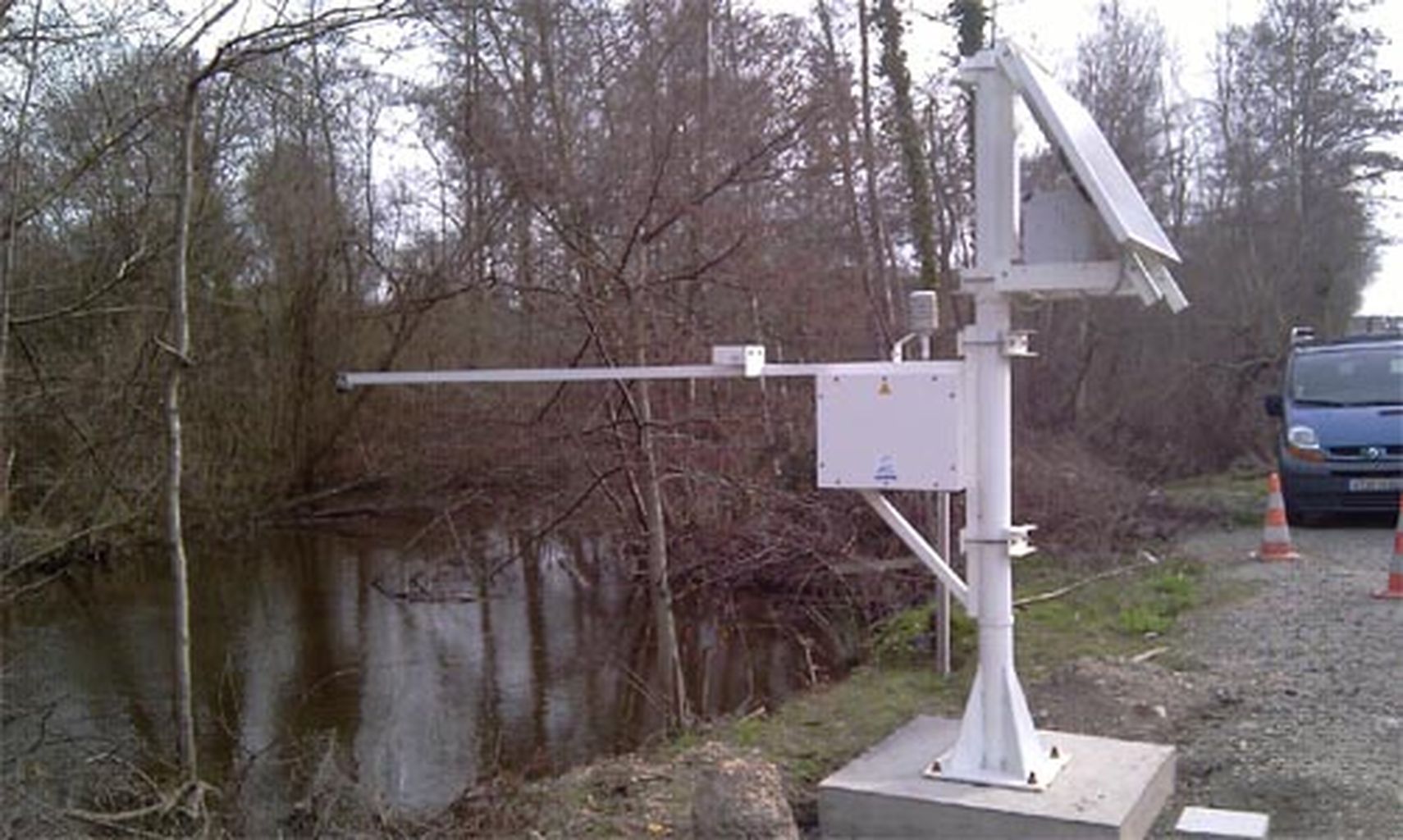

Our water level meters, placed in particularly sensitive sections of a hydraulic network, allow detecting automatically the height of water or snow, to follow exactly their evolution (relative to a nearby road surface for example) and inform technical personnel about overflow risks.
